PiEEG-16
16-channel EEG device for Raspberry Pi 5 — double the resolution for complex research
Product Gallery
Overview

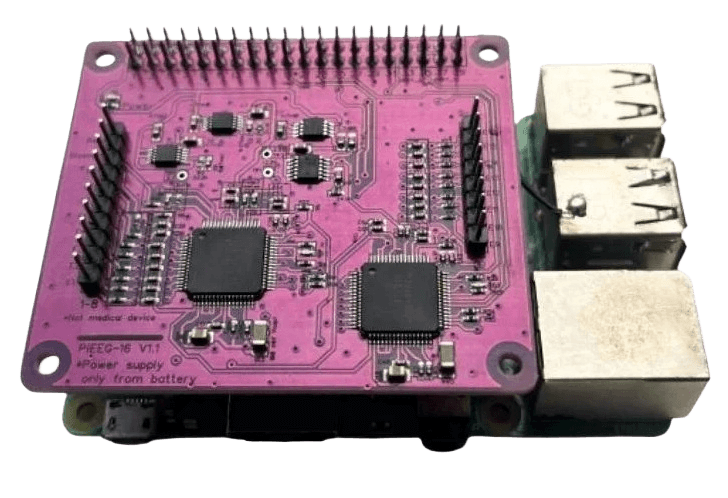

The PiEEG-16 enables you to measure 16 channels, making it possible to use in more interesting and complex projects compared to the 8-channel version. It maintains all the advantages of Raspberry Pi integration — reliability, accessibility to neuroscience, and real-time processing capabilities.
Applications include mind-controlled robotic manipulation and stress/meditation management. We provide comprehensive SDKs, documentation, and extensive user support.
Technical Specifications
| Channels | 16 |
| Resolution | 24-bit per channel |
| Sample Rate | 250 SPS – 16 kSPS |
| Interface | SPI |
| Gain | 1 / 2 / 4 / 6 / 8 / 12 / 24 |
| Signals | EEG, EMG, ECG |
| Platform | Raspberry Pi 5 |
| Impedance | Built-in measurement |
| Software | Open-source Python SDK |
Key Features
Raspberry Pi 5 Compatible
Optimized for the latest and fastest Raspberry Pi platform.
16 Biopotential Channels
Twice the channels for richer spatial coverage and complex brain mapping.
SPI Protocol
Configurable from 250 SPS to 16 kSPS for flexible sampling requirements.
24-bit Resolution
Per-channel high-precision ADC for clinical-quality signal capture.
Programmable Gain
Adjustable gain: 1, 2, 4, 6, 8, 12, 24 — adapts to any electrode setup.
Impedance Measurement
Built-in electrode impedance testing for reliable signal quality.
PiEEG-16 is not a medical device and has not been certified by any government regulatory agency for use with the human body. You are fully responsible for your decision to purchase and use this device. Read our Liability Statement →
Ready to Get Started?
Purchase PiEEG-16 from our official manufacturing partner Elecrow
