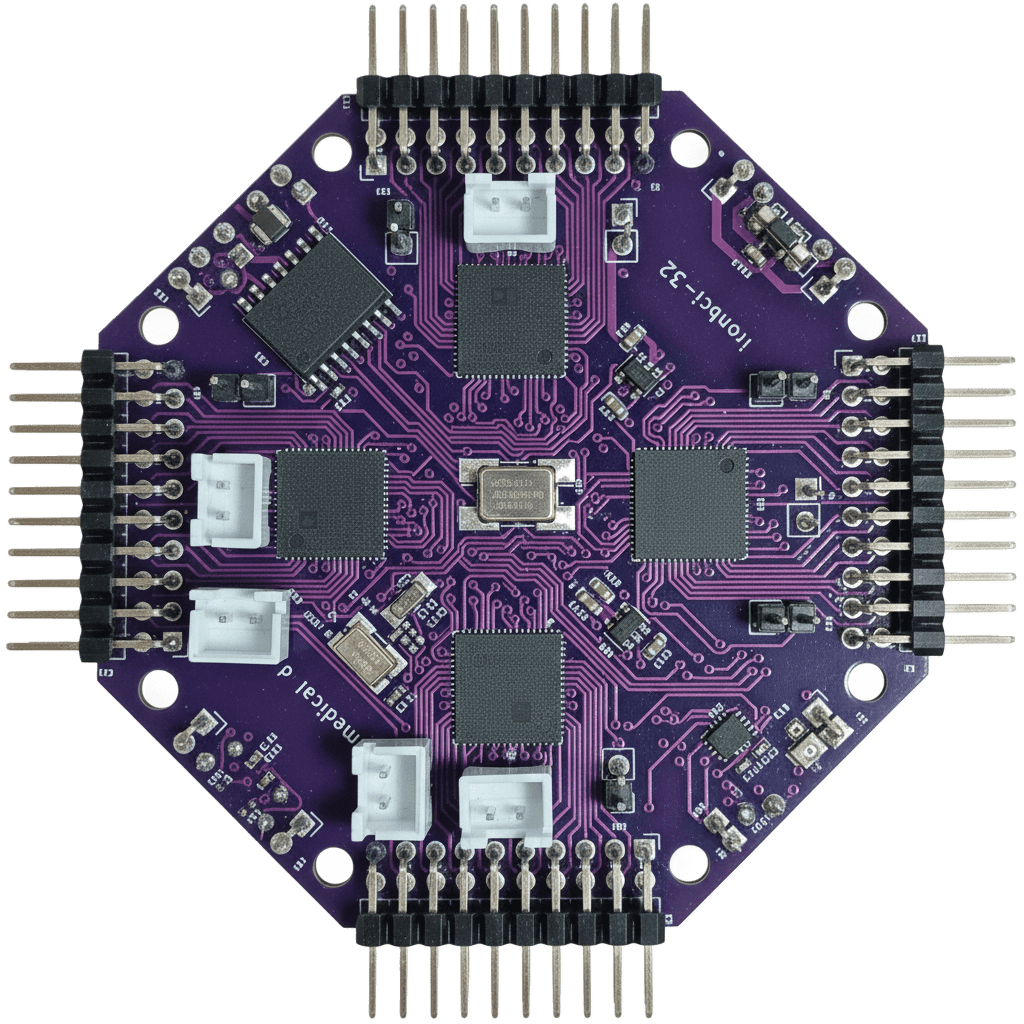

IronBCI-32
32-channel, 24-bit EEG open-source development kit for professional neuroscience research

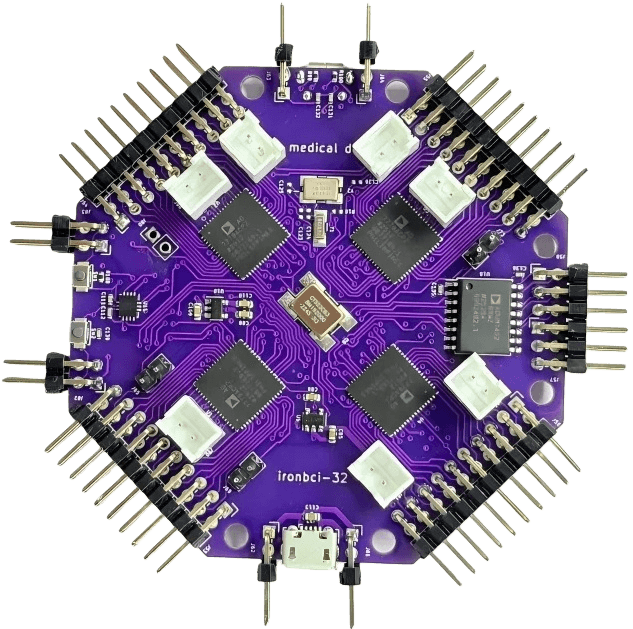

Professional 32-Channel System
ironbci-32 integrates four 8-channel AD7771 analog-to-digital converters (ADCs), each with ultra-low-noise sources, ensuring highly accurate signal capture. The core is powered by the STM32H7 ARM Cortex-M7 microcontroller.
Fully integrated into the open-source Brainflow Library, making it compatible with the broader neuroscience ecosystem. Optimized firmware delivers 500 Hz per channel when running all 32 channels simultaneously.
Product Gallery
Features & Specifications
4× AD7771 ADCs
8 channels each, ultra-low-noise sources
32 Simultaneous Channels
Highly accurate signal capture

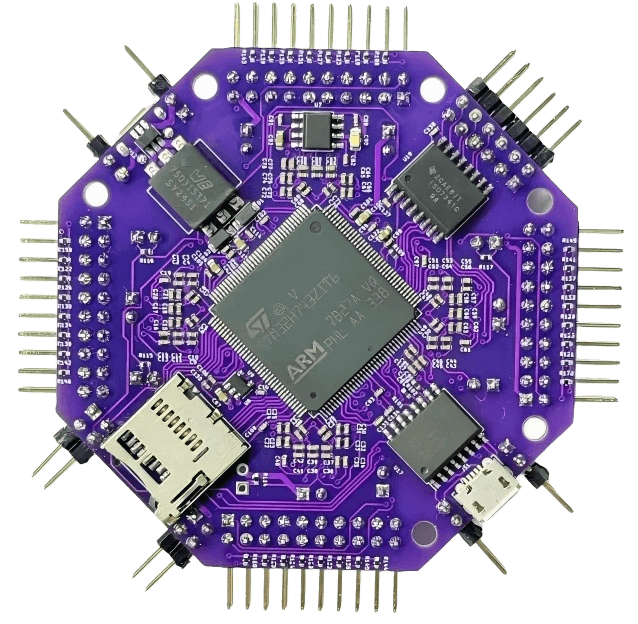

STM32H7 Core
ARM Cortex-M7 microcontroller
500 Hz per Channel
Firmware-fixed sampling rate (all 32 channels)
Serial Port Data Transfer
Reliable communication protocol
Brainflow Integrated
Important Notice
Not a medical device. Read the Liability before buying and using it.
Professional Research Starts Here
Purchase IronBCI-32 from our official manufacturing partner Elecrow
