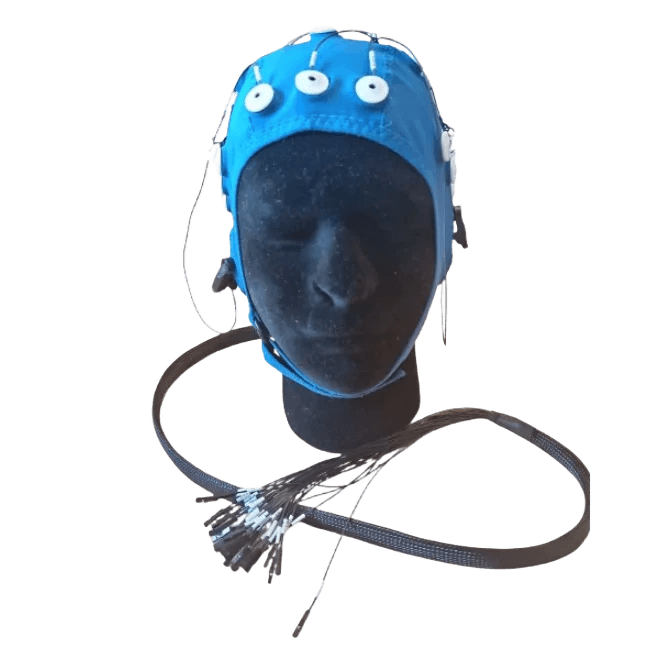

32 Channel Wet EEG Cap Kit
Professional nylon EEG cap with 32 wet Ag/AgCl electrodes and 2 ear clip references. Plug-and-play with IronBCI-32 via 2.54mm pin pitch.
About this kit

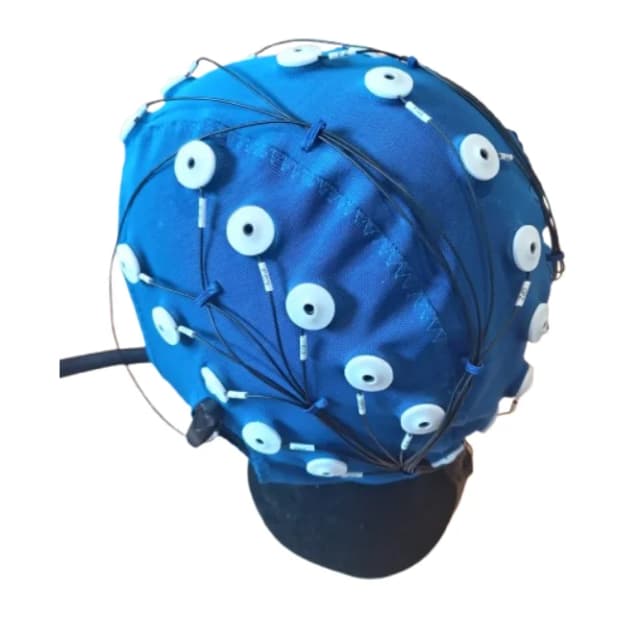

A ready-to-wear EEG cap with 32 wet Ag/AgCl electrodes and 2 ear-clip electrodes, pre-placed on the international 10-20 system and numbered to match IronBCI-32 channel by channel. Cover the whole head, from the forehead to the back of the head, with research-grade wet electrodes. Plug and play: every electrode ends in a standard 2.54 mm connector.
Why this kit?
| High-density coverage | 32 electrodes across the midline and both hemispheres, for brain mapping, connectivity and advanced BCI research. |
| Best signal quality | Wet Ag/AgCl electrodes with conductive gel give low impedance and low noise, the standard for high-quality EEG. |
| Made for IronBCI-32 | Each electrode matches its IronBCI-32 channel number, so wiring is quick and the channel order is always right. |

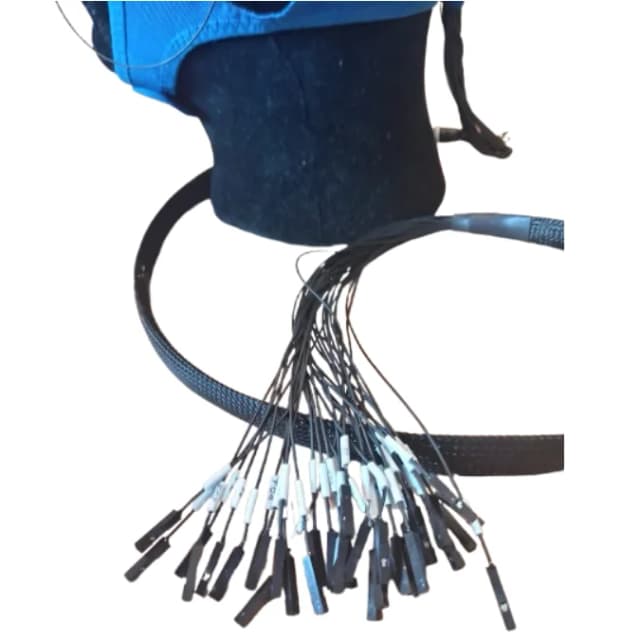

| Plug and play | Integrated cables with 2.54 mm connectors. No soldering, no adapters. |
| Complete kit | Cap, 32 signal electrodes and both ear clips (reference and bias), all in one box. |
Electrode positions
| Area | Channel: position |
|---|---|
| Midline (front to back) | 31: Fpz, 13: Fz, 14: FCz, 15: Cz, 16: CPz, 17: Pz, 32: POz, 18: Oz |
| Left hemisphere | 12: Fp1, 11: F3, 1: F7, 10: FC3, 2: FT7, 9: C3, 3: T7, 8: CP3, 4: TP7, 7: P3, 5: P7, 6: O1 |
| Right hemisphere | 25: Fp2, 24: F4, 26: F8, 23: FC4, 27: FT8, 22: C4, 28: T8, 21: CP4, 29: TP8, 20: P4, 30: P8, 19: O2 |
| Ear clips | A1 (left ear) and A2 (right ear): reference and bias |
Channel numbers are IronBCI-32 channels. T7, T8, P7 and P8 are the modern names for T3, T4, T5 and T6.
Good for
| Region | Positions | Typical use |
|---|---|---|
| Prefrontal and frontal | Fp1, Fpz, Fp2, F7, F3, Fz, F4, F8 | Attention, emotion, eye movements |
| Central | FC3, FCz, FC4, C3, Cz, C4, CP3, CPz, CP4 | Motor activity, motor imagery BCI |
| Temporal | FT7, T7, TP7, FT8, T8, TP8 | Auditory processing, language |
| Parietal and occipital | P7, P3, Pz, P4, P8, POz, O1, Oz, O2 | Alpha rhythm, visual activity, SSVEP |
Packing list
| Qty | Item |
|---|---|
| 1 | EEG cap, nylon, size L |
| 32 | Wet Ag/AgCl electrodes with integrated cables and 2.54 mm connectors |
| 2 | Ear-clip electrodes with 2.54 mm connectors (reference and bias) |
The IronBCI-32 and conductive gel are not included.
Product Gallery
Electrode Positions (10-20 System)
Midline (z-line)
Fpz · Fz · FCz · Cz · CPz · Pz · POz · Oz
Left Hemisphere (odd)
Fp1 · F7 · F3 · FC5 · FC1 · T7 · C3 · CP5 · CP1 · P7 · P3 · O1
Right Hemisphere (even)
Fp2 · F8 · F4 · FC6 · FC2 · T8 · C4 · CP6 · CP2 · P8 · P4 · O2
Specifications
Key Features
32 Channels
Full-scalp coverage with 32 wet Ag/AgCl electrodes following the 10-20 system across both hemispheres and the midline.
Plug & Play
2.54mm pin pitch connectors are directly compatible with IronBCI-32 — no soldering or adapters required.
Dual Reference
Two ear clip electrodes (A1/A2) included for standard linked-ear or single-ended reference configurations.
Full-scalp 32-channel EEG coverage
Wet Ag/AgCl electrodes across 32 channels for high-density brain recordings with IronBCI-32.
