16 Channel EEG Cap
Low-cost 16 channel textile EEG cap with gold-plated sintered Ag/AgCl electrodes. Professional grade and fully reusable.
About this cap

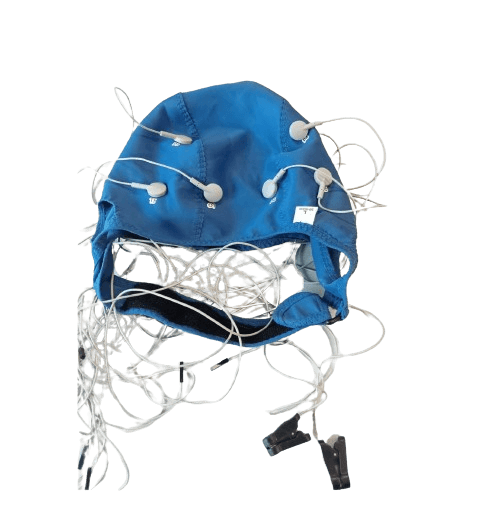

A ready-to-wear EEG cap with 16 dry Ag/AgCl electrodes and 2 ear-clip electrodes, pre-placed on the international 10-20 system. Cover the whole head (frontal, central, temporal, parietal and occipital areas) with no gel and no guesswork. Put the cap on, plug the cables into your PiEEG-16 and record 16 channels of EEG in minutes.
Why this kit?
| Full-head coverage | 16 electrodes at standard 10-20 positions, from the forehead to the back of the head. |
| No gel needed | Dry Ag/AgCl electrodes give a fast, clean setup with no washing afterwards. |
| Plug and play | Every electrode ends in a standard 2.54 mm connector that fits PiEEG boards directly. |
| Complete kit | Cap, 16 signal electrodes and both ear clips (reference and bias), all in one box. |
| Reusable | Soft, stretchy nylon cap for repeated sessions. |
Compatible devices
| Device | Channels used |
|---|---|
| PiEEG-16 (Raspberry Pi) | All 16 |
| PiEEG-8, IronBCI-8, MicroBCI, JNEEG, ardEEG | Any 8 of the 16 |
Electrode positions
| Area | Positions | Good for |
|---|---|---|
| Forehead (prefrontal) | Fp1, Fp2 | Attention, blinks and eye movements |
| Frontal | F7, F3, F4, F8 | Attention, emotion, frontal asymmetry |
| Central | C3, C4 | Motor activity (hand movement and motor imagery) |
| Temporal | T3, T4, T5, T6 | Temporal activity, auditory processing, jaw and face muscles |
| Parietal | P3, P4 | Sensory processing, attention |
| Occipital | O1, O2 | Alpha rhythm (eyes closed), visual activity |
| Ear clips | Ref.1, Ref.2 | Reference and bias |
Packing list
| Qty | Item |
|---|---|
| 1 | EEG cap, nylon, size L |

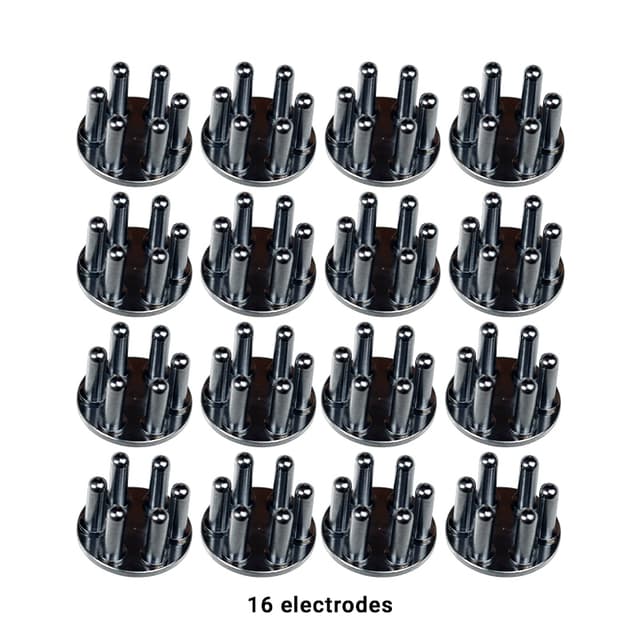

| 16 | Dry Ag/AgCl electrodes, each with a cable and a 2.54 mm connector |

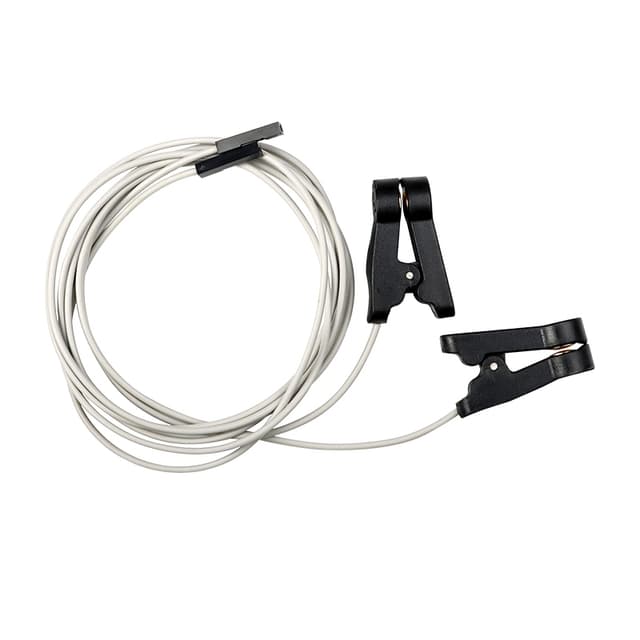

| 2 | Ear-clip electrodes with 2.54 mm connectors (reference and bias) |
The EEG device is not included.
Product Gallery
Specifications
Key Features
16 Channels
Double the spatial resolution over 8-channel setups. Capture richer brain topography for advanced BCI and research tasks.
Gold-Plated Ag/AgCl
Sintered Ag/AgCl electrodes with gold plating for stable, low-impedance contact and excellent longevity.
Reusable & Washable
Professional textile construction designed for repeated use. Clean and reuse across multiple recording sessions.
Professional 16-channel coverage
Gold-plated Ag/AgCl electrodes across 16 channels for high-density EEG recordings.
